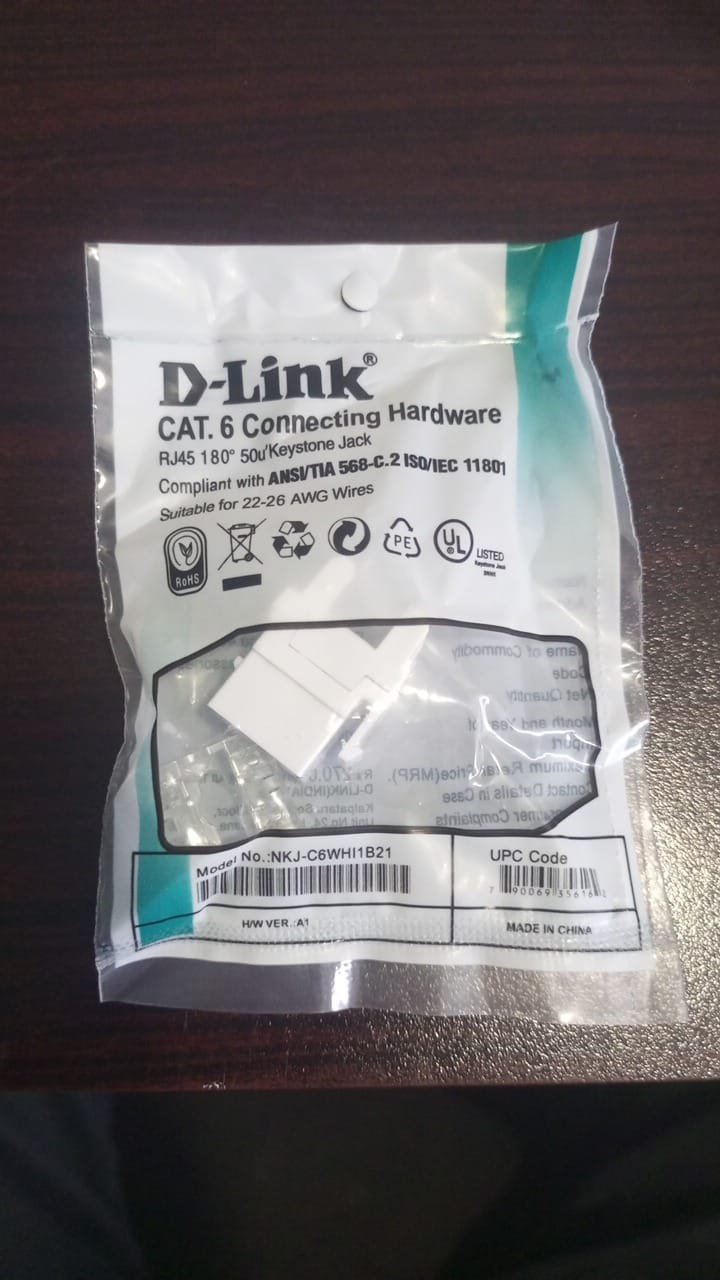

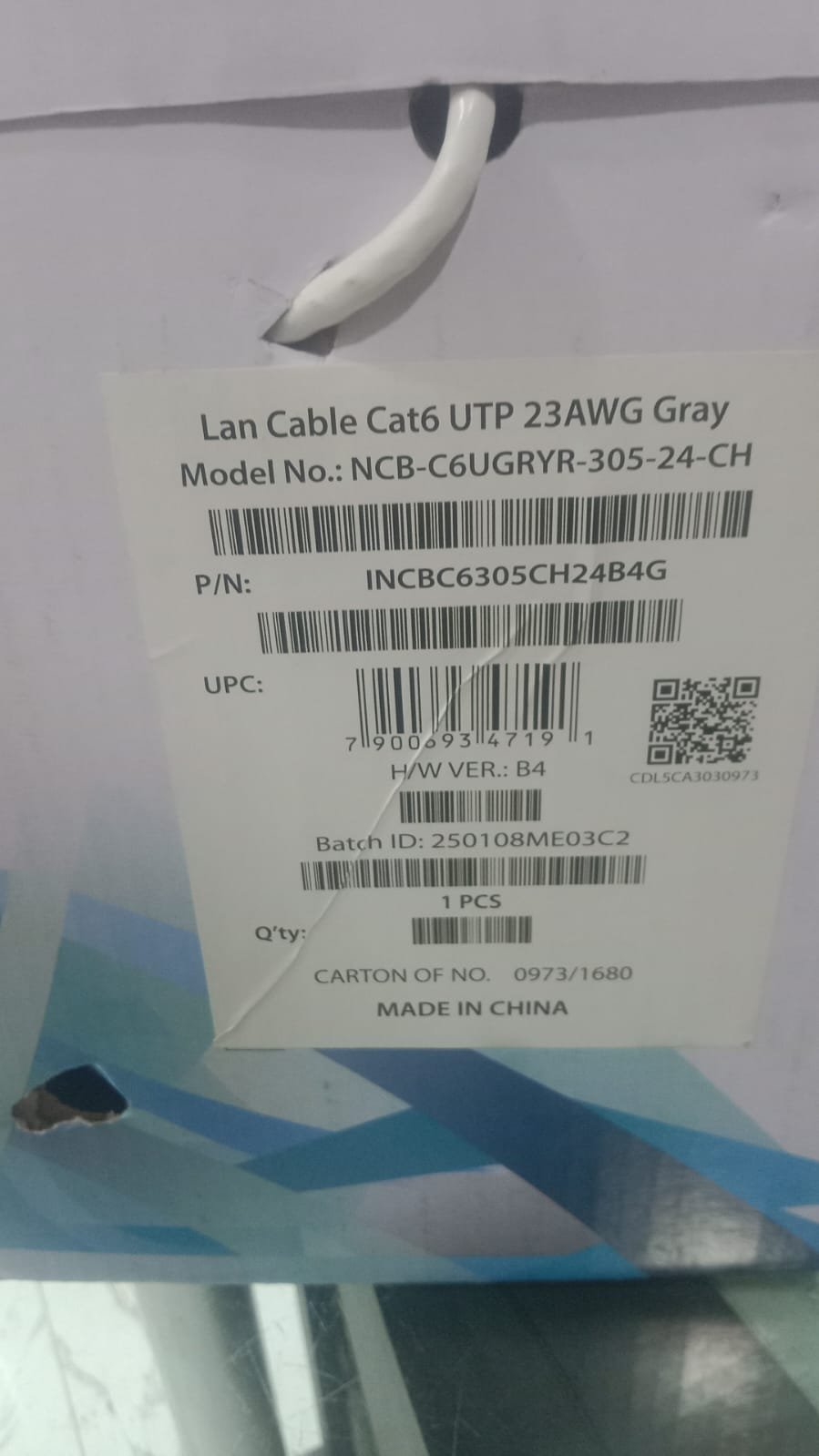

Networking D-Link Keystone Jack / IO D-Link CAT6 Keystone Jack IO PKR 660 Networking D-Link NCB-C6UGRYR-305-24-CH D-Link NCB-C6UGRYR-305-24-CH 23AWG HIGH QUALITY CAT6 UTP PKR 42,900 Networking D-Link NCB-C6UGRYR-305-CMR Enhanced performance cable for transmission of high-speed data, digital and analogue voice andvideo (RGB) signals on LANs. Supports Gigabit Ethernet (1000 BaseT) standard. Operates atbandwidth of 250 MHz. Meet the requirements of ANSI/TIA-568.C-2Construction:ConductorNominal Conductor DiameterSolid Bare Copper23 AWGInsulationPairingHigh Density Polyethylene2 Insulated conductors twistedtogetherSeparatorPair No.LSZHColor Code:1-2White Orange stripe andOrange3-64-5White Green stripe and Green7-8White Blue stripe and BlueWhite Brown stripe andBrownOuter SheathApproximate OD(Nominal)PVC-CMR, Grey Color6.1 mmFire RatingSequential MarkingCMR Rated as per UL 1666At Every MeterRip CordYesElectrical ParameterCharacteristic Impedance: 100 ± 15ΩConductor Resistance: ≤ 9.38Ω / 100mResistance Unbalance: 5% Max.Mutual Capacitance: 5.6 nF/100mCapacitance Unbalance: 330pF/100mDelay Skew: < 45nSMechanical PropertiesBending Radius : < 4 x Cable Diameter at 20˚C ± 1Pulling force: 11.5 KgOperational Temperature: -20˚ to +75˚CInstallation Temperature: 0˚ to 50˚C PKR 108,900 Networking D-Link NCB-C6UGRYR-305-E esistance:LSZH< 9.38Ω/100mPairs:Sheath:Cable Diameter:Printing:2 Insulated conductorstwisted togetherFR-PVC/LSZH6.1mm±0.2mmEach meter printed withMutual Capacitance:Resistance Unbalance:Capacitance Unbalance:Delay Skew:< 5.6nF/100m5% Max330pF/100m< 45nS PKR 82,500 Networking D-Link NCB-C6UGRYR-305-LS-E APPLICATIONEnhanced performance cable for transmission of high speed data, digital andanalogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet(1000 baseT) standard.PRODUCT HIGHLIGHTSSupports up to 500 MHz frequency Third party verified by Intertek TestingServices (ETL) ETL verified electrical transmission performance to therequirements of ANSI/TIA-568.2-D Cat6 and ISO/IEC 11801-1 Class E with4-connector channelStandards Compliance: TIA/EIA-568-C.2, ISO/IEC 11801 Class E, IEEE 802.310 BASE-T, 100BASE-TX, 1000BASE-T, PoE, ETL verified ANSI/TIA-568.2-D Cat6& ISO/IEC 11801-1 Class E Horizontal Cable Requirements.Conductor:23 AWG Solid bare CopperELECTRICAL PROPERTIESInsulation:High Density Polyethylene SolidConductor Resistance:LSZH< 9.38Ω/100mPairs:Sheath:Cable Diameter:Printing:2 Insulated conductorstwisted togetherFR-PVC/LSZH6.1mm±0.2mmEach meter printed withMutual Capacitance:Resistance Unbalance:Capacitance Unbalance:Delay Skew:< 5.6nF/100m5% Max330pF/100m< 45nS PKR 89,100 Networking D-Link NCB-C6UGRYR-305/INX Cat6 UTP 24AWG CableCat 6 UTP 24AWG CableEnhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 baseT) standard. Operates at bandwidth of 250MHz.Features4-pair unshielded twisted pair (UTP) cable4-pair unshielded twisted pair (UTP)24 AWG solid copper conductor for superior conductivityPVC JacketSpecificationsPairs : 2 Insulated conductors twisted togetherCable Diameter : 5.6 ± 0.3mmConductor Resistance: < 9.38 ohm/100mMutual Capacitance : < 5.6nF/100mResistance Unbalance : 5% MaxCapacitance Unbalance : 330pF/100mDelay Skew: < 45nS PKR 40,700 Networking D-Link Switch DGS-F1016P 16-port 10/100Base-T Unmanaged Long Range 250m PoE+ Surveillance Switch with 16 PoE portsDES-F1016P-E/BThe D-Link DES-F1016P-E is a 16 port 100Mbps with 16 10/100 Mbps PoE ports, 1 Gigabit Combo (RJ45/SFP) uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.Power Over EthernetThe DES-Fl016P-E supports both IEEE 802.3at and IEEE 802.3af PoE protocol. With a total PoE budget of 150 watts ,allowing users to attach an IEEE 802.3af-compliant device to the DES-Fl 016P-E without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves PKR 48,400 Networking D-Link Switch DGS-F1024P 24 Port 10/100/1000 Mbps Unmanaged SwitchDGS-F1024The DGS-F1016 and DGS-F1024 10/100/1000 Mbps unmanaged switches are economical, plug-and-playnetworking switch solutions for SOHO and small and medium businesses wanting to benefit from theincreased bandwidth of Gigabit Ethernet. They provide 16 or 24 10/100/1000 Mbps ports that enableyou to easily expand your network and provide a quick way to upgrade your network to fastconnectivity.Upgrade to Gigabit NetworkingWith data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quickfile t ransfers, o nline g aming a nd s mooth s treaming m edia. T hey f eature e asy-to-accessEthernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIXcrossover makes connections a cinch; just plug in your cables and you’re ready to go.Conserve EnergyThe DGS-F1016 and DGS-F1024 support IEEE 802.3az Energy-Efficient Ethernet, which saves energy andreduces heat automatically without sacrificing performance or functionality. The switches candetect when a connected computer is shut down or when there is no Ethernet traffic and canautomatically reduce the power used for that port, cutting power usage substantially. Inaddition, the switch optimizes power usage for each port for the length of cable connected to it,using only as much power as is required. Both of these features work together to help you savepower automatically.Reliable Plug and Play InstallationThe DGS-F1016 and DGS-F1024 are plug-and-play devices that require no configuration, so setup issimple and hassle-free, and you can easily connect multiple computers, share files, music, andvideo across your home or small office network, or even create a multiplayer gaming environment.IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer isfull, giving you a more reliable connection for all of your connected devices.The DGS-F1016 and DGS-F1024 10/100/1000 Mbps unmanaged switches are economical, plug-and-playnetworking switch solutions for SOHO and small and medium businesses wanting to benefit from theincreased bandwidth of Gigabit Ethernet. They provide 16 or 24 10/100/1000 Mbps ports that enableyou to easily expand your network and provide a quick way to upgrade your network to fastconnectivity.Upgrade to Gigabit NetworkingWith data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quickfile t ransfers, o nline g aming a nd s mooth s treaming m edia. T hey f eature e asy-to-accessEthernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIXcrossover makes connections a cinch; just plug in your cables and you’re ready to go.Conserve EnergyThe DGS-F1016 and DGS-F1024 support IEEE 802.3az Energy-Efficient Ethernet, which saves energy andreduces heat automatically without sacrificing performance or functionality. The switches candetect when a connected computer is shut down or when there is no Ethernet traffic and canautomatically reduce the power used for that port, cutting power usage substantially. Inaddition, the switch optimizes power usage for each port for the length of cable connected to it,using only as much power as is required. Both of these features work together to help you savepower automatically.Reliable Plug and Play InstallationThe DGS-F1016 and DGS-F1024 are plug-and-play devices that require no configuration, so setup issimple and hassle-free, and you can easily connect multiple computers, share files, music, andvideo across your home or small office network, or even create a multiplayer gaming environment.IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer isfull, giving you a more reliable connection for all of your connected devices. PKR 56,100 Networking Dahua CAT6 DH-PFM920I-6U-C ConductorMaterialOxygen free copper (99.97% purity)Diameter0.57 mm ± 0.02mm(0.0224"±0.0007")American Wire Gauge23AWGInsulationMaterialHDPEMin. Average Thickness0.27 mm(0.0106")Diameter1.12 mm ± 0.06 mm(0.0441"±0.0023")Color (4 Pairs)Blue, white/blue; orange, white/orange; green, white/green; brown, white/brownSeparatorMaterialPESpecificationTranslucent 5.2 mm × 0.7 mm (0.2047"× 0.0275")Rip CordMaterialPolyesterSpecification500DShieldingMaterialAluminum foilSpecification25×0.063mm (25× 0.0025")SheathMaterialPVCMin. Average Thickness0.55 mm(0.0216")Diameter7.3 mm ± 0.4 mm(0.2874"±0.0157")ColorGrayElectricalMax. DC Resistance of a Single Conductor9.5Ω/100 mMin. Insulation Resistance5000MΩ·kmMax. DC Resistance Unbalance2% (pair intra), 4% (pairs inter)Dielectric StrengthNo breakdown with 1KV DC for 1 minTransmissionCharacteristic Impedance100 ± 15ΩNear End Cross Talk≥33.10 dB/100 m@250 MHzMax. Attenuation32.8 dB/100 m@250 MHzReturn Loss≥17.3 dB/100 m@250 MHzMechanicalTensile StrengthSheath≥13.5 MPa, insulation≥16 MPaElongation at BreakSheath≥150%, insulation≥300%Installation Bending Radius>8 times of outer cable diameterConductor Elongation at Break≥10%EnvironmentalShrinkage of Insulation≤5%Color Migration Resistance of InsulationNo migrationSheath Tensile Strength and Elongation at Break after Aging≥13.5 MPa, rate of change≤20%Low Temperature Bending TestNo cracking after the testHeat Shock TestNo cracking after the testOperation Temperature–20°C to +60°C (–4°F to 140°F)Installation Temperature0°C to +50°C (32°F to 122°F)Storage Temperature and Humidity–10°C to +40°C (14°F to 104°F), <60% (RH)PackagingLength305.0 m (1000.66 ft) ± 2.0 m ( ft)Packaging Dimensions400mm×400mm×310mm (15.74"x15.74"x12.20") (L × W × H)Packaging Method305.0 m (1000.66 ft) a cartonNet Weight15.6kg±0.6kg ( 34.39lb±1.32lb)Executive StandardExecutive StandardANSI/TIA 568-C.2CertificationCertificationCPR Eca PKR 51,700 Networking Dahua CAT6 DH-PFM920I-6U51 ConductorMaterialOxygen free copper (99.97% purity)Diameter0.50 mm ± 0.01 mmAmerican Wire Gauge24AWGInsulationMaterialHDPEMin. Average Thickness0.18 mmDiameter0.90 mm ± 0.05 mmColor (4 Pairs)Blue, white/blue; orange, white/orange; green, white/green; brown, white/brownRip CordMaterialPolyesterSpecification500DSheathMaterialPVCMin. Average Thickness0.5 mmDiameter5.1 mm ± 0.2 mmColorWhiteElectricalMax. DC Resistance of a Single Conductor9.5Ω/100 mMin. Insulation Resistance5000MΩ·kmMax. DC Resistance Unbalance5% (pair intra)Dielectric StrengthNo breakdown with 2.5KV DC for 2 secondsTransmissionCharacteristic Impedance100 ± 15ΩNear End Cross Talk≥35.30 dB/100 m@100 MHzMax. Attenuation22.0 dB/100 m@100 MHzReturn Loss≥20.1 dB/100 m@100 MHzMechanicalTensile StrengthSheath≥13.8 MPa, insulation≥16.5 MPaElongation at BreakSheath≥100%, insulation≥300%Installation Bending Radius>8 times of outer cable diameterConductor Elongation at Break≥10%EnvironmentalShrinkage of Insulation≤6%Color Migration Resistance of InsulationNo migrationSheath Tensile Strength and Elongation at Break after Aging≥11.73 MPa, ≥50%Low Temperature Bending TestNo cracking after the testHeat Shock TestNo cracking after the testOperating Temperature–20°C to +60°C (–4°F to 140°F)Installation Temperature0°C to +50°C (32°F to 122°F)Storage Temperature and Humidity–10°C to +40°C (14°F to 104°F), <60% (RH)SecurityVertical Fire Propagation TestComply with IEC 60332-1-2PackagingCable Length305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)Inner Carton Dimensions364.0 mm × 364.0 mm × 216.0 mm (14.33" × 14.33" × 8.50") (L × W × H)Packaging Method305.0 m (1000.66 ft) a carton, one carton with 2 ininner cartonsNet Weight≥8.0 kg (17.64 lb)Gross Weight≥9.0kg（19.84lb）ComplianceExecutive StandardsISO/IEC 11801-1-2017,IEC 61156-5-2009CertificationCertificationCPR EcaTransmission Characteristics(100 m at 20°C) (328.08 ft at 68°F)Frequency (MHz)Phase delay ≤ nsIL ≤ dBNEXT≥ dBPS NEXT≥ dBACRF≥ dB15702.065.362.363.845524.156.353.351.885475.851.848.845.7105456.550.347.343.8165438.247.244.239.7205429.345.842.837.82554110.444.341.335.831.2554011.742.939.933.962.553917.038.435.427.910053822.035.332.323.8Frequency (MHz)PS ACRF ≥ dBRL ≥ dBDelay skew ≤ nsZc(Ω)1n/sn/sn/sn/s460.823.045.0100±15842.724.51040.825.01636.725.02034.825.02532.824.331.2530.923.662.524.921.510020.820.1Note:Executive standard for the above parameters: ANSI/TIA-568-C.2-2009 PKR 46,200 Networking Dahua CAT6 UTP Cable Roll Dahua CAT6 UTP Cable Roll PKR 29,700 Networking Fiber Attenuator LC-3 Fiber Attenuator LC-3 3db LC/PC PKR 1,045
